NC reducing machine
NC reducing machine
1. Reduce Dia. of the shell body according to GBD value

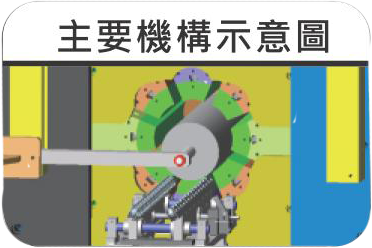

2. 8/12 segmental dies design.
1. Shell body diameter: ψ80 ~ 160 mm
2. Shell body length: 130 ~ 600 mm
3. Plate thickness: 1.0 ~2.0 mm
4. Shell body material: SUS316 / SUS409
5. Brick outer diameter: ψ77 ~ 150 mm
6. Brick length: 70 ~ 120 mm
7. Brick diameter tolerance:± 1mm
1. It can directly judge the operation based on the input signal of the catalyst outer diameter and reduce the overall diameter of the purifier.
2. Diameter reduction accuracy: ±0.25 (diameter reduction position)
