Automatic brick dia. measuring/ mat weighting/ automatic wrapping machine
Automatic brick dia. measuring/ mat weighting/ automatic wrapping machine
˙ Measure brick Dia. by CCD camera

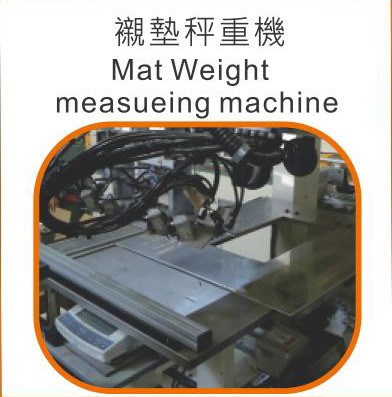

˙ Measure mat Wt. by scale
˙ Auto wrap the brick and mat
1. Shell body diameter: ψ80 ~ 160 mm
2. Shell body length: 130 ~ 600 mm
3. Plate thickness: 1.0 ~2.0 mm
4. Shell body material: SUS316 / SUS409
5. Brick outer diameter: ψ77 ~ 150 mm
6. Brick length: 70 ~ 120 mm
7. Brick diameter tolerance:± 1mm
1. No damage to the catalyst.
2. It can accurately transmit the detection data to the numerical control reduction system, and print out a qualified and clear QR code.
3. Accuracy of press-fitting position: ±1mm (within tolerance of carrier length within ±0.5mm)
